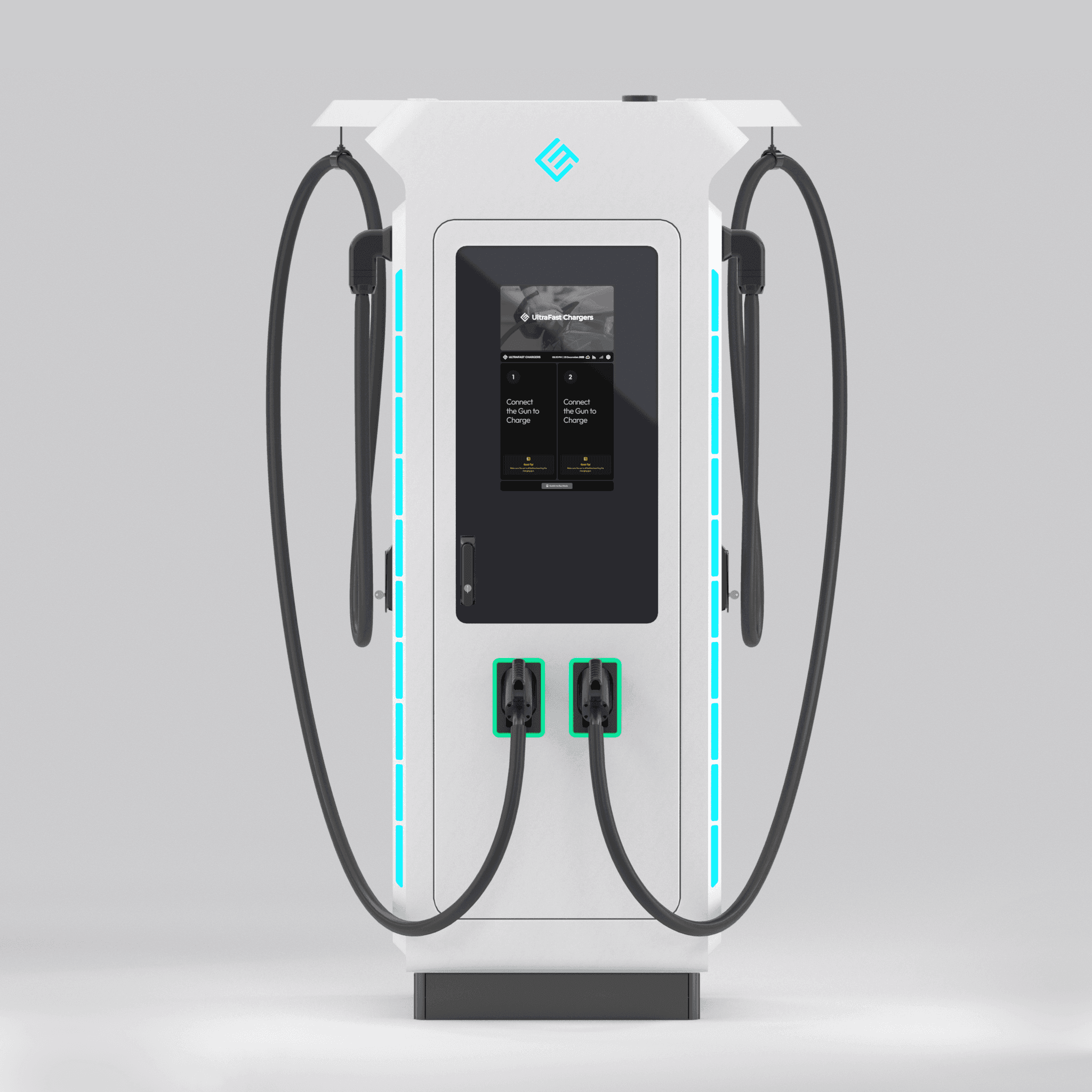

UFC400
For Indian Highway Corridors and Flagship Commercial Sites
Flagship 120 – 400 kW DC fast charger featuring India's first single-screen smart charging + integrated digital advertising.
Flagship performance, ad-monetizable display
The UFC400 is UltraFast Chargers' flagship DC fast charger 120kW to 400kW with 500A boost mode. India's first single-screen smart charger architecture integrating charging parameters and digital advertising on one 21.5-inch HD display. Engineered specifically for Indian highway corridors, high-traffic commercial sites, and premium EV charging hubs.
Highlights
- ARAI Certified
- Up to 400 kW with 500 A boost output
- Single Unified Display Architecture
- Remote advertisement campaign management
- Replaceable gun contacts; anti water-logging gun holder
- Falcon-wing cable management
- Matrix lighting
- Real time dynamic load sharing across guns
Revenue Beyond Charging: UFC400's 21.5" HD display with remote cloud advertising management generates advertising revenue during every session independent of electricity costs or session tariffs. Highway site operators earn from media impressions, not just energy delivered.
Best For: Highway rest stops | Fuel station EV upgrades | Premium malls | Bus depots | Fleet corridors | Flagship CPO sites
विशेष विवरण
- Power Range
- 120 – 400 kW
- Scalability
- Upgradable from 120 kW to 400 kW
- DC Voltage
- 150 – 1000 V
- Maximum Output
- 375 A, 400 kW
- DC Current
- CCS2: 500 A (Boost mode), 375 A constant current
- Number of Outlets
- Dual outlet
- Efficiency
- Up to 96%
- Standby Power
- 79 W
- Voltage
- 415 VAC (Wide range: 280 VAC - 530 VAC)
- Frequency
- 45 – 60 Hz (+5%)
- AC Power
- 3-phase (L1, L2, L3), N and PE
- Power Factor
- > 0.99 at full load
- Total Harmonic Distortion (THD)
- < 5%
- SPD
- Type 2
- Display
- 21" HD full-color anti-glare LCD, 1000 nits, Touchscreen
- Contrast Ratio
- 5000:1
- HMI Configuration
- Logo, app QR code, backend settings, power limits, URL setup, efficiency curve
- Languages
- English
- Lighting
- Dual RGBW LED strips, gun holder RGBW LEDs
- Cable Management System
- 2 x Integrated self-retracting swing arm
- Authentication
- RFID, Autocharge, Plug&Charge, Mobile App
- Network
- 3G/4G (5G optional), Ethernet (10/100 Base-T), optional second SIM modem
- OCPP
- OCPP 1.6J and 2.0.1
- Remote Management
- Access control, configuration, diagnostics, software updates
- Cable
- 6 m (air-cooled)
- Dimensions (HxWxD)
- 2100 x 750 x 750 mm
- Weight
- 430 - 480 kg
- Mounting
- Floor mounted
- Enclosure
- Nano ceramic coating with PU textured coating
- Operating Temperature
- -30 °C to 55 °C with derating
- Storage Temperature
- -40 °C to 80 °C, IEC 60721-3-2
- Humidity
- Up to 95%, non-condensing
- Altitude
- 2000 m
- Impact Resistance
- IK10
- Protection
- IP55
- Noise Emission
- 62–65 dB(A) at full power
- Safety Standards
- IEC 61851-1, IEC 61851-23
- EMC
- IEC 61851-21-2
- Vehicle Communication
- DIN SPEC 70121, ISO 15118-2, ISO 15118-3
- Additional Standards
- IEC 62196-1, IEC 62196-3, IEC 60529
- Expected Lifespan
- 10 years
